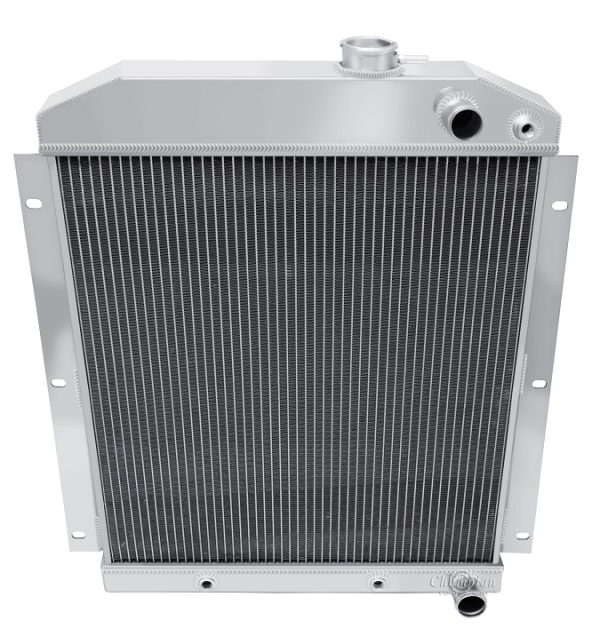

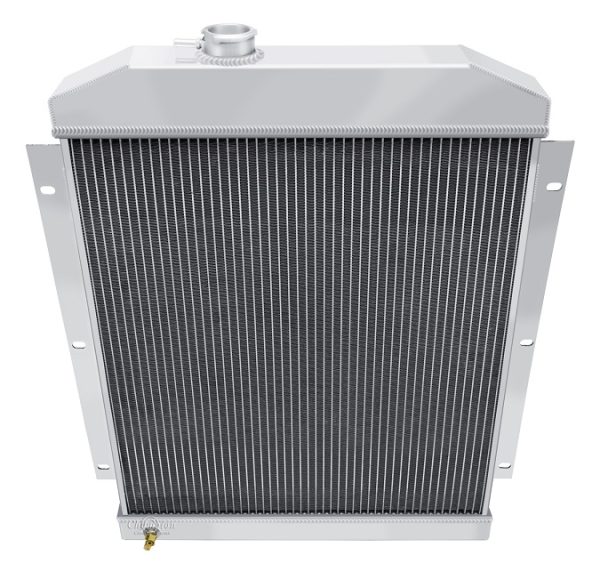

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
Correct photos to follow shortly, inlet and
steam port on passenger side

Radiator Dimensions:
Total: 26.75" tall x 23" wide (including brackets)
Core: 20.75" tall x 19.25" wide x 2.5" thick
Inlet 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Steam Port included
Transmission Cooler included (1/2" -20 straight thread, inverted flare)
Aluminum Shroud is also Available (sold separately)
