Transmission & Bellhousing Kit TH350 to SB Ford

_x000D_
_x000D_

Designed for the extreme high performance street or all out race car, our Full Manual Competition Transmissions will give you consistent shifts as well as complete control over shift points. This version (Part# 312000) has a forward shift pattern and requires no vacuum hookups or kickdown linkage. This means there are no external linkages to be purchased, which saves some expense. The increased line pressure provides a harder, quicker shift and eliminates the lag time between shifts produced by automatic shift transmissions.

_x000D_
_x000D_

_x000D_
• Extreme performance clutches and nitrided steel plates for enhanced performance

_x000D_

• High-performance power bands provide greater torque capacity and more positive shifts and band apply

_x000D_

• Hardened sprag races increases durability & strength

_x000D_

• Improved lubrication system increases fluid sent to planetaries and internals

_x000D_

• Able to handle up to 750 HP, depending on application

_x000D_

_x000D_
_x000D_

Part# 312000 Specifics:

_x000D_
_x000D_

_x000D_
• 6″ Tailshaft

_x000D_

• Forward Shift Pattern

_x000D_

_x000D_
_x000D_

Transmissions for maximum performance, then dyno tests and pressure tests them. So you can concentrate on winning the race!

_x000D_
_x000D_

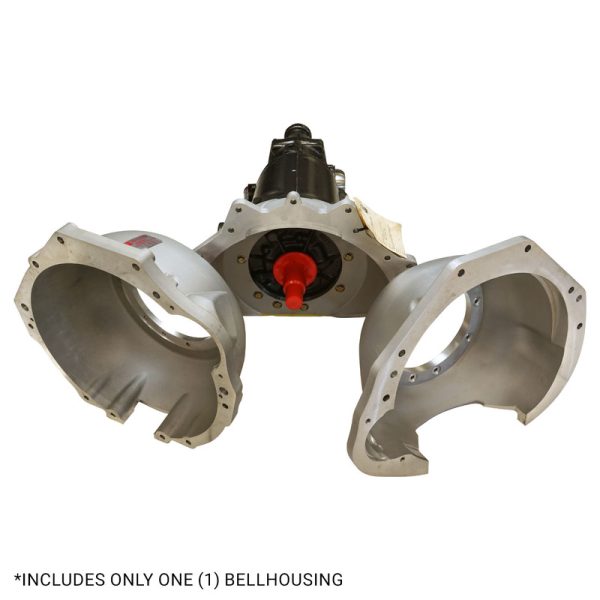

SFI Bellhousing

_x000D_
_x000D_

Using the latest technology, RTS has come up with these Aluminium bellhousings. These Bellhousings are Certified flexplate shields and allow for special motor and transmission combinations to be easily mated together. RTS Bellhousings are manufactured from one-piece cast aluminum, making them 5 times stronger than stock bellhousings. They are capable of withstanding even the most severe tire shake, can fit under most stock floorboards.Meets all SFI 30.1 requirements.

_x000D_
_x000D_

_x000D_
• Small Block Ford 289, 302, 351W/C

_x000D_

• SFI 30.1 Certified

_x000D_

• Works with OEM TH350 / Th400 Cases

_x000D_

• A356-T6 Cast Aluminum

_x000D_

• Precision Machined

_x000D_

• 5x stronger than OEM

_x000D_

• Works with Most 11” and Smaller Torque Converters

_x000D_

• Requires Removal of OEM Bellhousing on OEM Cases

_x000D_

• Must use 164 tooth Flexplate
