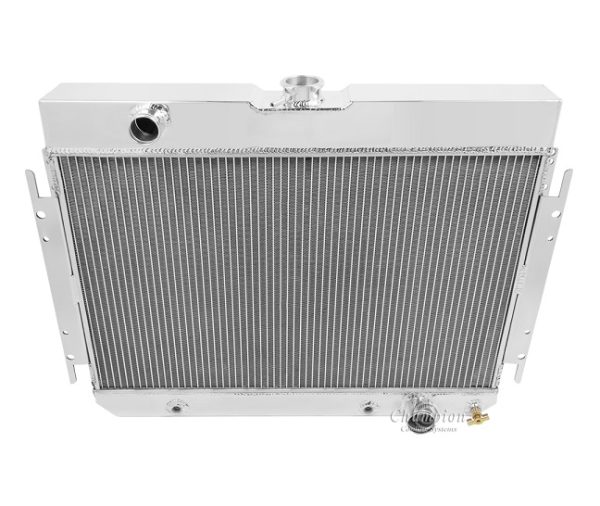

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

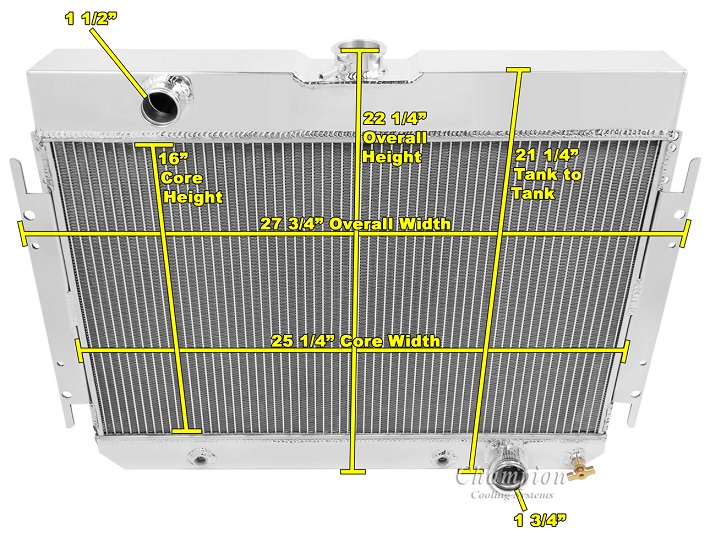

Radiator Dimensions:
Total: 21.75″ tall x 28″ wide (with brackets)
Core: 16.13″ tall  x 25″ wide x  2.5″ thick
Inlet: 1.5″ driver side
Outlet: 1.75″ passenger side
Tanks: 2.75″ thick
Tubes: 0.75″ thick

Bracket Mounted

LS Version Available
Transmission Cooler Included (1/2″- 20 STRAIGHT THREAD)
Radiator Cap Included
Aluminum shroud available (sold separately)

When using electric fans:
One 16″ or two 12″ Electric fans recommended for this core size. (sold separately)
