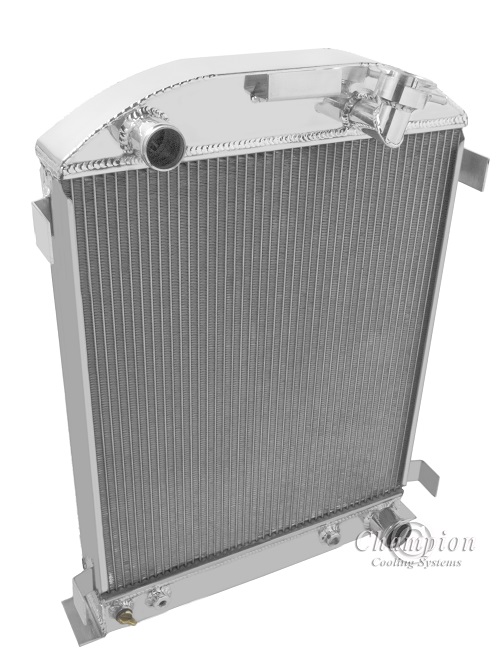

All Aluminum Champion Radiator
3-Row Core | Cools up to 850hp

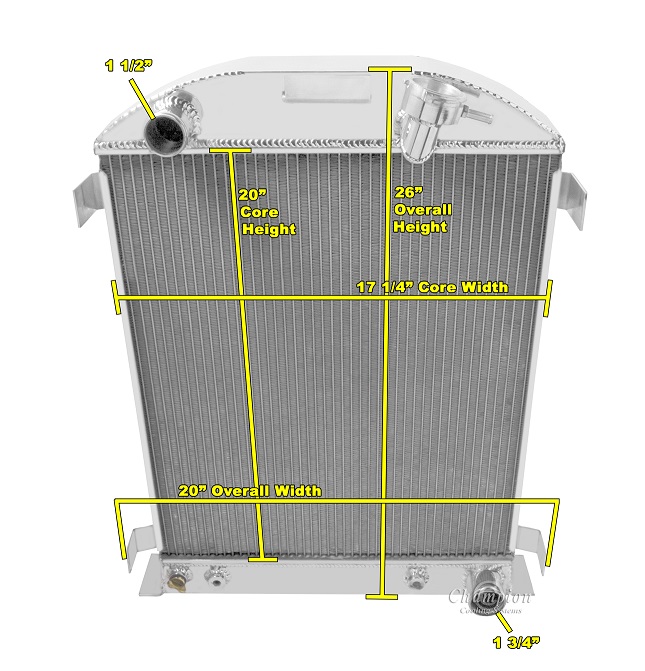

Radiator Dimensions:
Total: 26″ tall x 19.75″ wide (lower bracket)
Core: 20″ tall x 17.25″ wide x 2.5″ thick
Inlet: 1.5″ driver
Outlet: 1.75″ passenger side
Tanks: 3″ thick | 17.5″ wide
Tubes: 0.75″ thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2″-20 STRAIGHT THREAD, INVERTED FLARE)

When using electric fans:
One 16″ fan recommended for this core size (sold separately)
